ON / OFF switch
230 V, 2-pole, illuminated in blue, with lamp symbol, for switching built-in sockets or for external assignment
Installation dimensions: 50 x 50 mm
ON / OFF switch
230 V, 2-pole, illuminated in blue, For switching built-in sockets or for external assignment
Installation dimensions: 50 x 50 mm
ON / OFF switch
230 V, 2-pole, illuminated in blue, with lamp symbol, for switching built-in sockets or for external assignment
Installation dimensions: 50 x 50 mm
1× Stainless steel pushbutton with blue LED ring
Pushbutton potential-free Switching data: 240 VAC/DC, 3 A
LED can be connected separately. LED operating data: 24 VAC/DC, 7 mA
Installation dimensions: 25 × 50 mm
1 Stainless steel pushbutton with blue LED ring, angled outlet
Pushbutton potential-free Switching data: 240 VAC/DC, 3 A
LED can be connected separately. LED operating data: 24 VAC/DC, 7 mA, labeling field
Installation dimensions: 50x50 mm
2 Stainless steel pushbuttons with blue LED ring, angled outlet
Pushbutton potential-free Switching data: 240 VAC/DC, 3 A
LED can be connected separately. LED operating data: 24 VAC/DC, 7 mA Angled outlet with labeling field
Installation dimensions: 50x50 mm

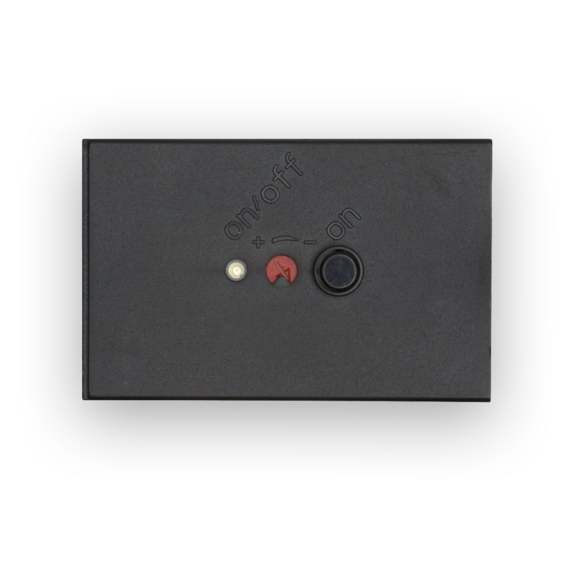

Master / Slave Switch 2-pole
controls downstream sockets (slave sockets), available only as combination of upstream master and downstream slave sockets
Switching threshold:
adjustable from 20 to 100 mA, Rated voltage: 250 V,
Rated current: 16 A, 2-pole, Protection class IP20,
black plastic frame
Installation dimensions: 75 x 50 mm
