EVOline^®One Install

Always close.

EVOline^® One the compact power or data access.
The round single socket can be installed horizontally or vertically. The flexible cable entry guarantees a minimum installation depth of 50 mm and thanks to the wide range of module inserts, the One can be adapted to all requirements.

ONE UPHOLSTERY SLEEVE AND ONE CLAMPING PIECE

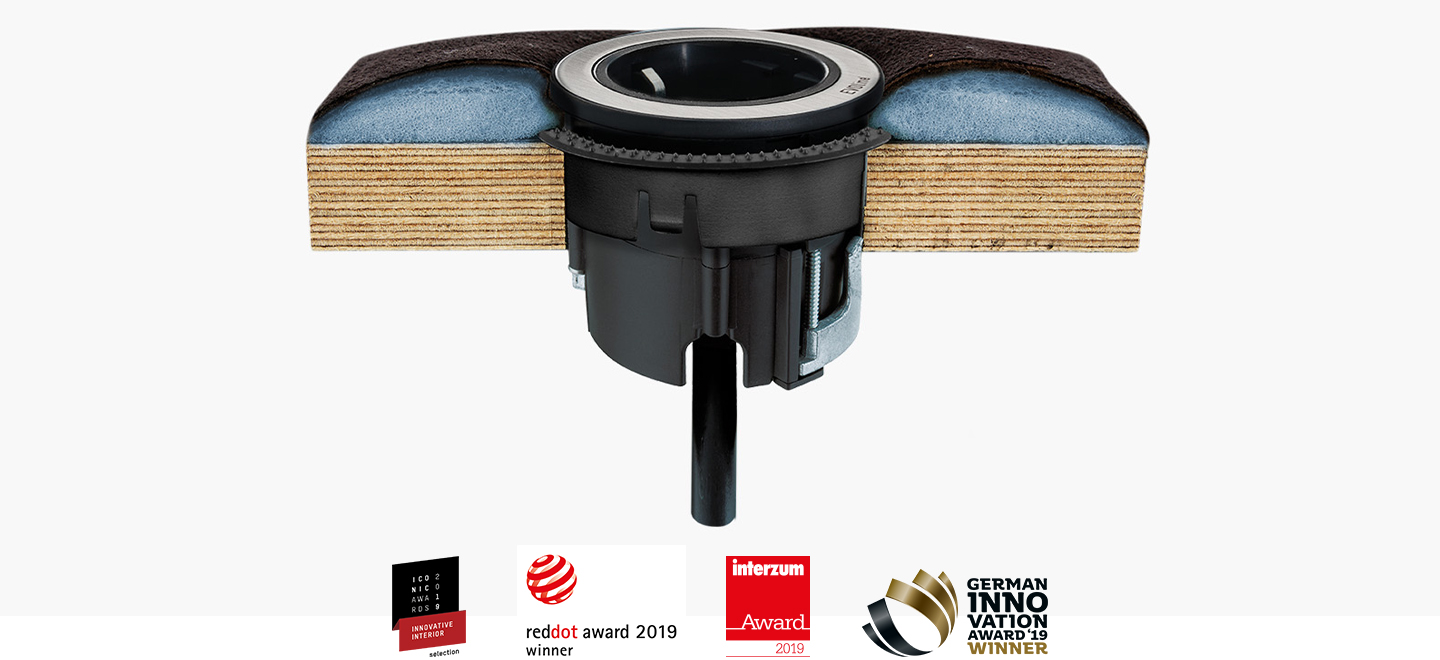

Upholstered Furniture installation

The upholstery sleeve can be used in furniture with different fabrics and thickness of padding and base structures. The fabric is held in place between the sleeve
and One unit, ensuring both remain fixed over time. Short or Long wing clamps can also be specified to accomodate different combined thicknesses.

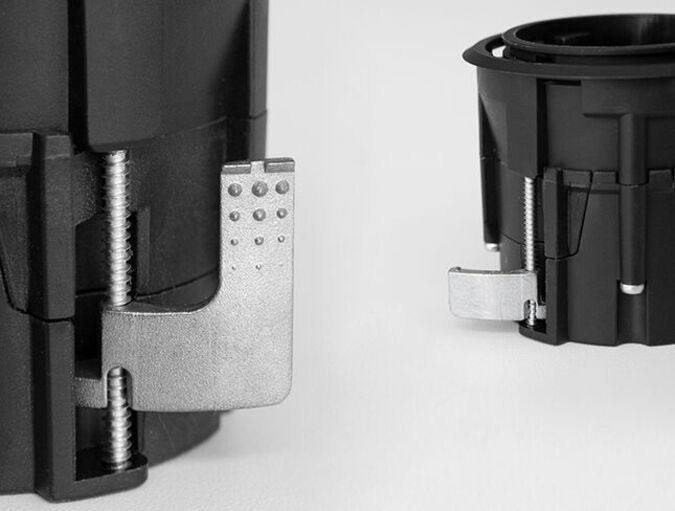

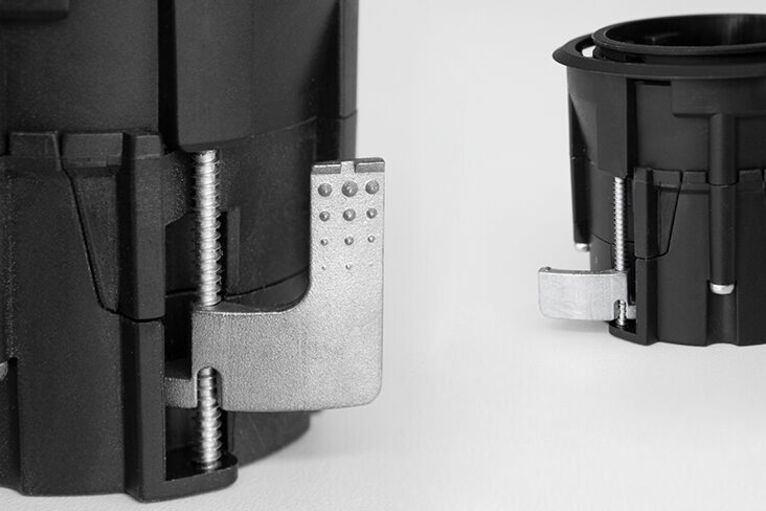

CLAMPING WINGS

For all material thicknesses

Due to the optional long or short clamping wings, the One fastening system lasts from a material thickness of 9 mm. There is no upper limit. Even with infinitely thick material, the One stays where it belongs.

ONE SPACER SLEEVES LIFT AND SLIM FIT

Installation in shallow materials

The two spacer sleeves Lift and SlimFit enable the One to be installed in very thin wall thicknesses from 1 mm. One or both sleeves are simply slid over the One as required during installation to achieve an additional 12 mm in front of and/or 10 mm behind the panel.

Cable management

Usual space saving

Sometimes it has to be a little less. The flexible cable entry guarantees a minimum installation depth of just 50 mm and an installation diameter of 54 mm.
